Tutorial

Build a Low Code Brex Client to Automate Operations

0
 minutes

Some things are fantastic together. 🍔🥤

In particular, REST APIs and Low code dovetail nicely.

Although APIs simplify development, they also demand a level of programming skill and technical ability. Low code frameworks like Appsmith can provide a visual layer on top of the API that empowers non-technical audiences and citizen developers to build client applications.

There is much value in simplifying the development process where we can. Low code works best for development projects where the problem domain is well understood and there are very few use cases. REST API clients are well suited to that extent - the API contract itself serves as a kind of blueprint for the client application. Take, for instance, the Brex APIs.

Brex offers several APIs that range from Onboarding and Payments to Teams and Transactions. Brex admins can plug into these APIs to build powerful workflows and custom automations. To demonstrate, we'll build an Appsmith dashboard that will connect to your Brex account.

Key Takeaways

  • Appsmith has a REST interface that allows us to create and modify query objects. A query object is a portable, reusable construct that defines parameters needed for a single API call. We'll use several query objects to engage the Brex APIs.
  • Building a multi-page interface with Appsmith is incredibly simple and well-documented. The platform provides a visual way to build pages using widgets and drag/drop functionality. However, unlike the global Appsmith store, page resources are page-scoped and cannot be referenced across different pages. Despite that, it is still possible to move or copy resources from one page to another.
  • We'll use JavaScript Promises to simplify asynchronous workflows. This will enable us to launch multiple API calls concurrently and then handle the responses elegantly. Normally, this is a challenge because API calls rely on the network and conclude at inexact points in time. To overcome this, we used to apply callback functions, but JavaScript Promises are an improvement over callbacks.

What are we building?

In this tutorial, we'll create an Appsmith tool that leverages the Brex APIs to perform bulk operations on your Brex account. By uploading a CSV file, you'll be able to create credit cards, users, and vendors. These changes will be reflected in your Brex dashboard immediately. Our tool will also support terminating cards and deleting vendors.

As it is not intended for production use, this application doesn't attempt to be either complete or systematic. It is more like a demo project. Rather than serve as a proper software solution, the final application is meant to demonstrate what is possible using Appsmith and the Brex APIs.

For context, this tutorial depicts the reader as a fictional Brex customer in order to provide a frame of reference and bring meaning to the sample CSV files. Pretend that you are an outer space company that issues Brex credit cards to your colleagues. The cardholders have personal cards as well as other cards designated for expenses such as Equipment Repairs, Launch Services, and Telecom. You will also define fictional Vendors: General Atomics, Orbital Transport Services, Space Food Systems. Let's suppose you are building this application to automate a few back office operations. You have chosen to build it using Appsmith.

What do I need?

First, you'll want to sign into Appsmith and create a new application. Next, sign in to your Brex account and generate a user token with Read/Write permissions for Cards, Referrals, Users, and Vendors. Appsmith will use this token to authorize API calls.

To confirm that your token is working, you can perform a quick sanity check with curl:

COPYcurl --request GET 'https://platform.brexapis.com/v2/users/me' \
--header 'Authorization: Bearer <your-token>'

The response will resemble the following:

COPY{
   "id": "cuuser...",
   "first_name": "Michael",
   "last_name": "Collins",
   "email": "mcollins@example.com",
   "status": "ACTIVE"
}

Postman

Alternatively, you can use Postman to test API calls. In fact, the Brex Developer workspace allows you to experiment with every endpoint documented in the Brex Developer Portal.

Appsmith Echo API

Consider using the Appsmith Echo API to spare production API calls.

COPY[POST] https://mock-api.appsmith.com/echo/post

While testing your Appsmith tool, sometimes you will need to invoke non-idempotent API endpoints such as Create card and Invite user. Instead of exercising the live endpoints, you can create an API datasource that relies on the Appsmith Echo API:

COPYfor(let i = 0; i < 5; i++) {
  echo_post.run(onSuccess, onError, params);
}

To mock HTTP status codes and errors, you might try httpstat.us.

Disposable Inbox

For testing user invites, I recommend a disposable email system like Mailinator or Temp Mail.

Git Repo

There's a companion repo that contains sample CSV files and supporting JavaScript code for this tutorial. You can also use Appsmith's Import-Export feature to migrate the demo application to your own account.

Brex APIs

The base URL for all Brex APIs is https://platform.brexapis.com.

  1. Use this URL to create an authenticated API datasource called brex-prod.
  2. Select Bearer Token for the Authentication Type.
  3. Supply your Brex user token.
  4. Click Save.

You should now have a datasource that we can use to create Queries.

New query objects will show in the left side panel, under QUERIES/JS. For example, here I've created a query for the Get current user endpoint:

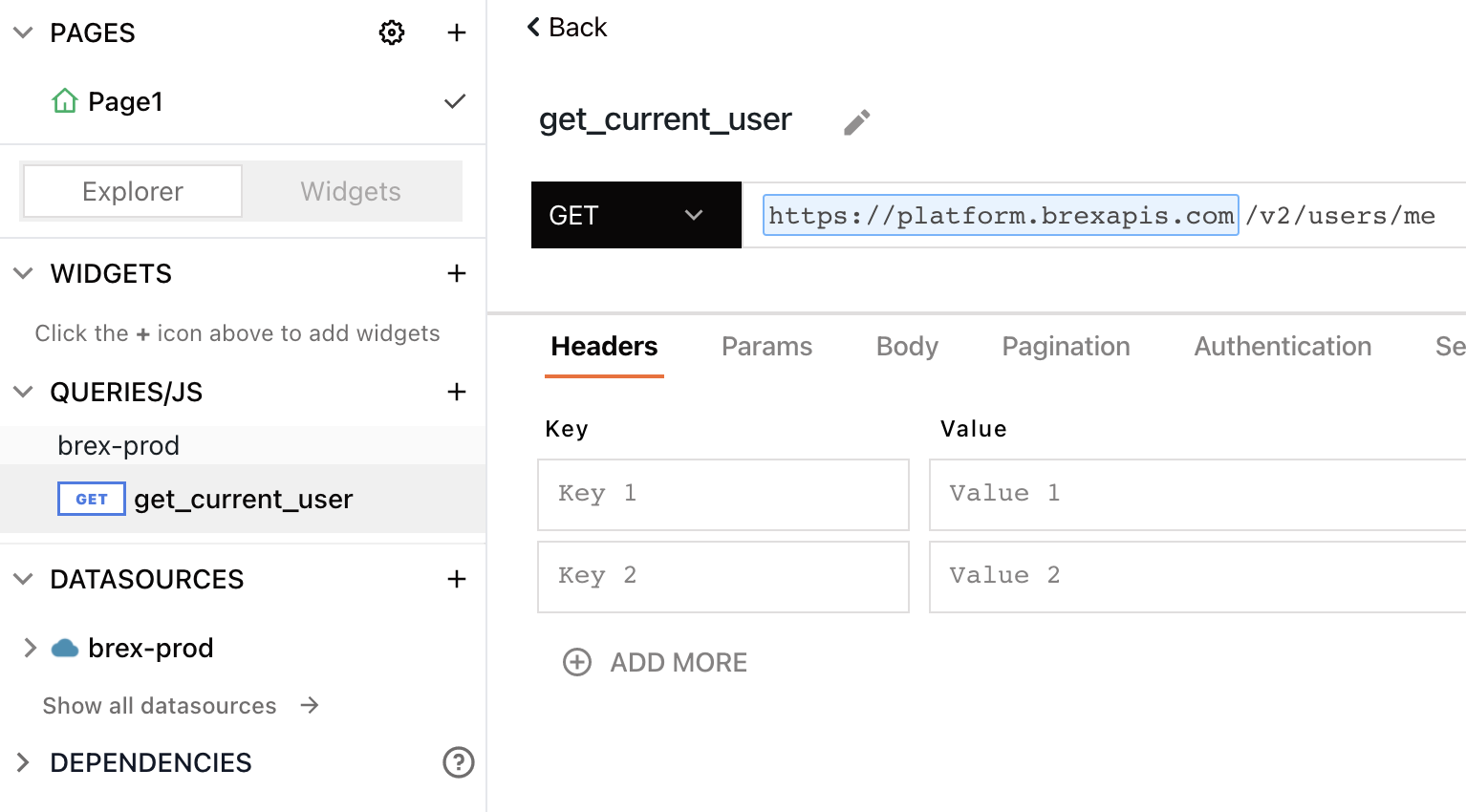

get-current-user-api-pane

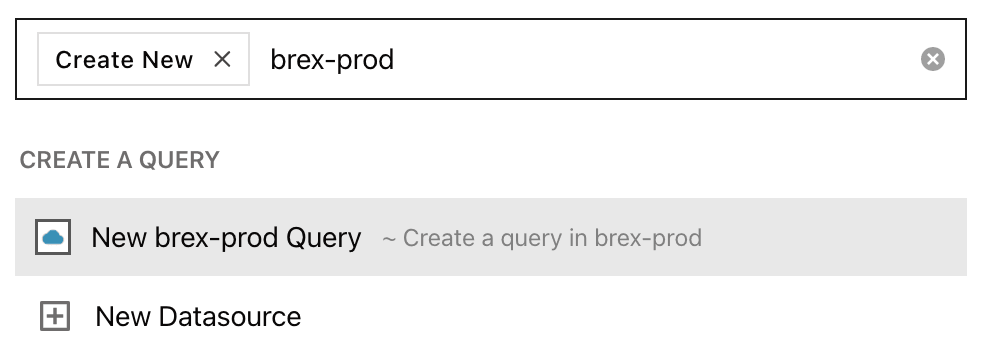

Now, you can create new query objects from the brex-prod datasource. The following search box will appear when you click the + icon next to the QUERIES/JS menu option:

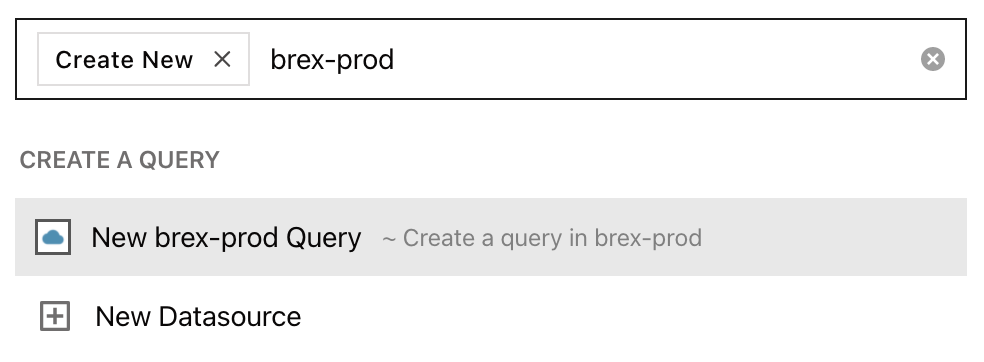

brex-prod-datasource

Going forward, we'll create several queries to support our application.

Onboarding API

The Onboarding API allows you to refer your customers and personal contacts to Brex. You might use the Create referral endpoint as part of the Brex Referral Program.

Unlike the Get current user endpoint, Create referral is a POST endpoint that requires a JSON body.

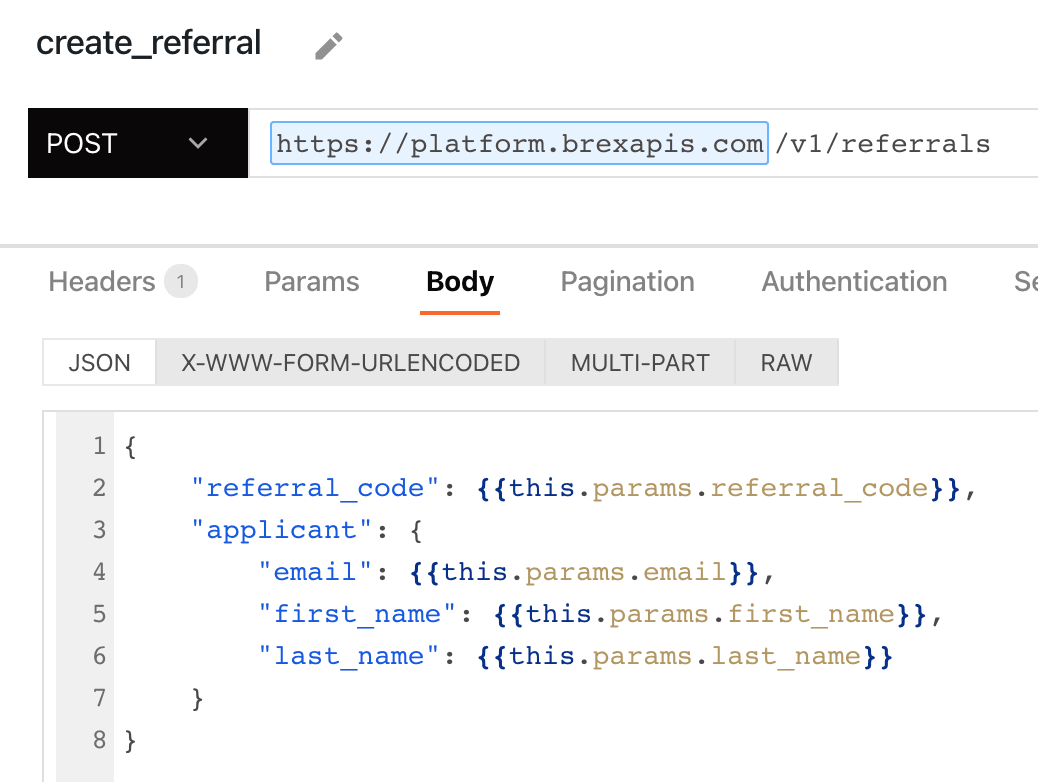

create-referral-json-body

Later on, we'll discuss this.params. For now, understand that it is possible to run the create_referral query object and pass parameters into it, like so:

COPYconst params = { referral_code, email, first_name, last_name };
return create_referral.run(params); // always return the promise

Team API

The Team API lets you manage users, departments, locations, and cards. For this example, we'll manage users and cards, starting with the Invite user endpoint, which allows you to invite a new team member as an employee. Through the dashboard, Brex admins can assign various role types to the employee, but team members created through this endpoint will bear the Employee role type by default.

Your invite_user query object will POST to /v2/users. The request body should match the following:

COPY{
   "first_name": {{this.params.first_name}},
   "last_name": {{this.params.last_name}},
   "email": {{this.params.email}}
}

Idempotency

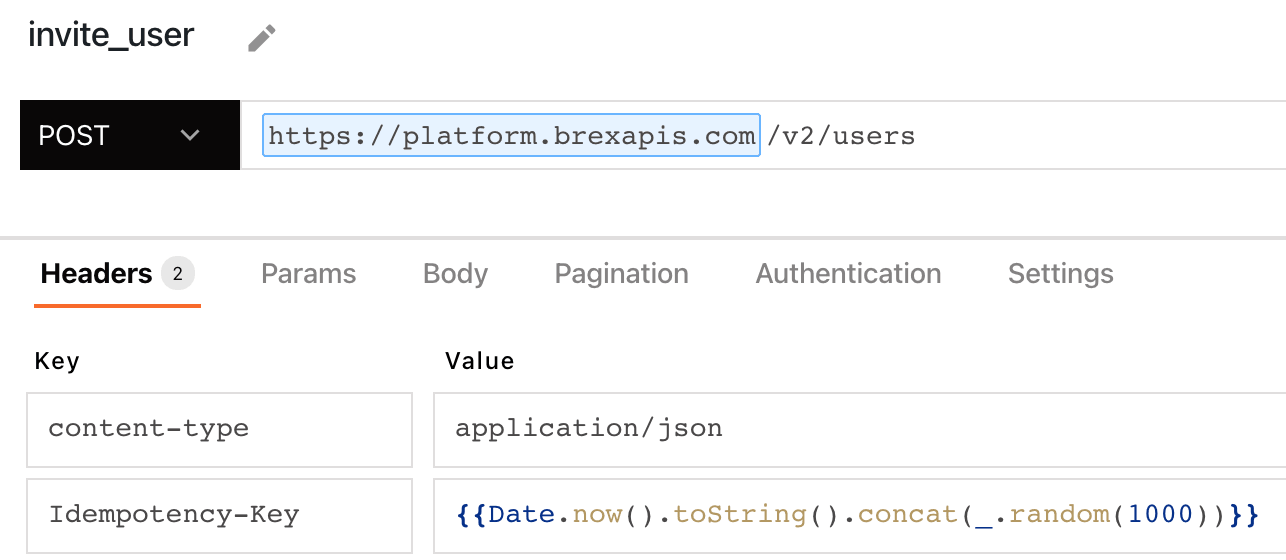

Under the Headers tab, be sure to generate a random string value for the Idempotency-Key:

idempotency-key

Idempotency is well beyond the scope of this tutorial. But, in short, the idempotency key ensures that the API server will only process a non-idempotent request once.

For a moment, consider network interruptions that may cause downstream services (or even the application itself) to perform a retry. Without an idempotency, the server would attempt to process the same request again. The idempotency key helps the API server keep track of whether the operation was already performed or not.

Notice that the code to generate the Idempotency-Key includes a reference to Lodash: _.random(1000). Lodash, among other libraries, is built into the Appsmith platform, which is super handy.

Create Card

The create_card query object also requires an Idempotency-Key, and will POST to /v2/cards. The request body is:

COPY{
   "owner": {
       "type": "USER",
       "user_id": {{this.params.user_id}}
   },
   "card_name": {{this.params.card_name}},
   "card_type": "VIRTUAL",
   "limit_type": "USER"
}

The Create card endpoint also accepts other parameters, card types, and limit types, so check out the developer docs. There's also a spend_controls parameter that allows you to define a spend limit for the card. This limit can be set to refresh each month, quarter, year, or never (for one-time use).

Terminate Card

We can also reference {{this.params...}} in the query object URL. For example, the terminate_card query object will POST to the Terminate card endpoint, which has a URI parameter, {{this.params.card_id}}:

COPY/v2/cards/{{this.params.card_id}}/terminate

The request body for terminate_card:

COPY{
 "description": "demo",
 "reason": "OTHER"
}

There are also other reason codes such as CARD_LOST, CARD_NOT_RECEIVED and FRAUD, but for this example, we'll stick with OTHER.

Note that the Idempotency-Key is not required, because card termination is idempotent by definition. In other words, terminating a card multiple times has the same effect as terminating a card once.

Payments API

The Payments API allows you to initiate and manage payments and vendors from your Brex Cash account. We'll use the Create vendor endpoint as an example. In a production application, you would also include vendor payment information to enable ACH, wire, or cheque payments from your Brex Cash account. But, for this example, we'll omit the vendor's payment type. You can also add vendor payment information from the dashboard - How do I manage my vendors on Brex Cash?

Create Vendor

The create_vendor query object will POST to /v1/vendors. This endpoint requires an Idempotency-Key and the request body is:

COPY{
  "company_name": {{this.params.company_name}}
}

Delete Vendor

The delete_vendor query object will send DELETE requests to /v1/vendors/{{this.params.vendor_id}}. There is no request body.

Initial Data Loading

The following query objects will enable us to populate tables on page load. To ensure that Appsmith pulls the initial dataset each time, you can configure each query object to run on page load:

QueryEndpointget_cardsList cardsget_usersList usersget_vendorsList vendors

This option is located under the Settings tab inside the query object:

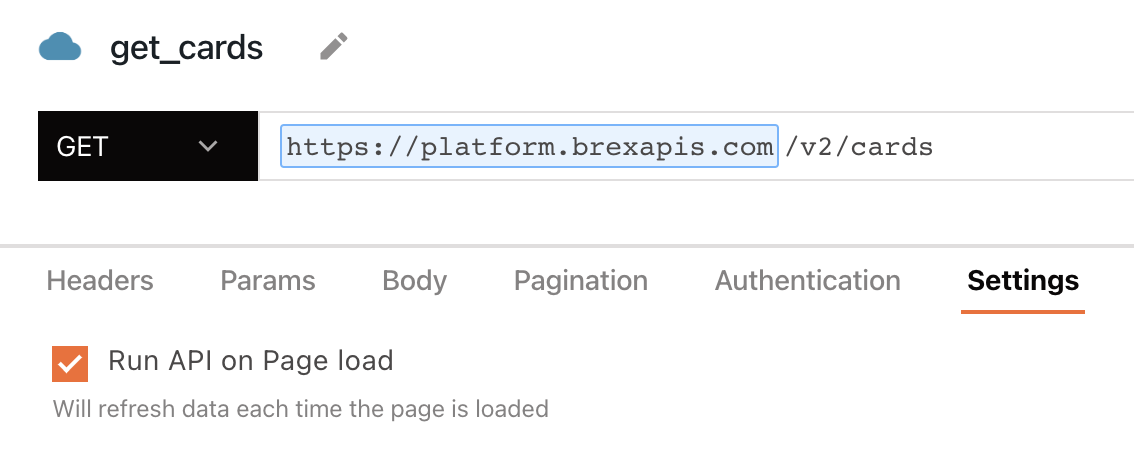

query-settings

Appsmith Pages

The goal of our app is to provide a user-friendly way to create Brex credit cards, vendors, invites, and referrals. In this section, we'll envision the page layout and breifly touch on a few key points. You'll use a drag/drop interface to build the UI. But, before we get started:

  1. Rename Page1 to Cards.
  2. Add a page for Users and another page for Vendors.
  3. Move get_users, create_referral and invite_user from the Cards page to the Users page.
  4. Move get_vendors, create_vendor and delete_vendor to the Vendors page.

Now that our work is cut out, we'll begin creating each page.

Cards

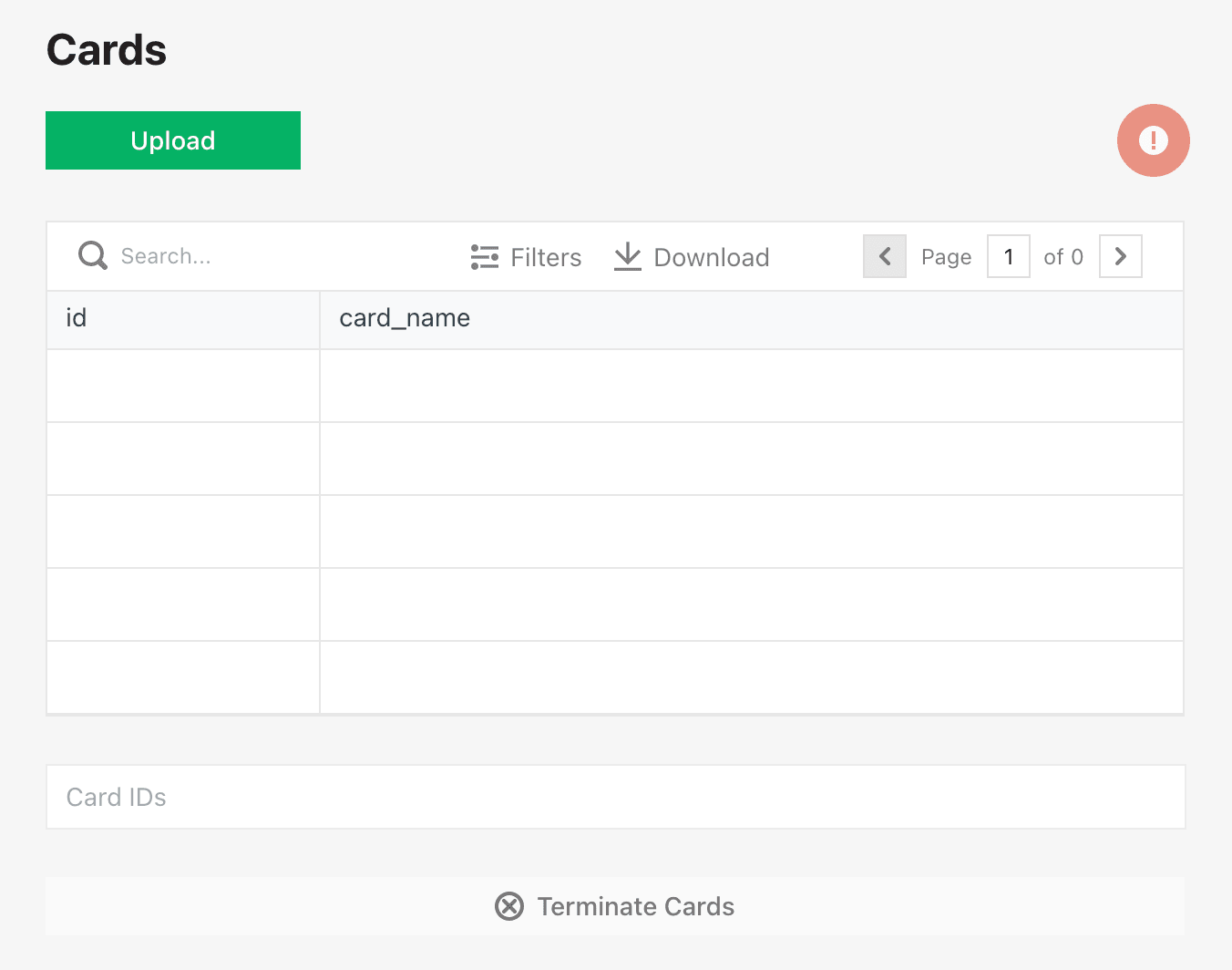

Use the Appsmith widgets to create the following page to your ability. Note that the green Upload widget is a file picker, not a button.

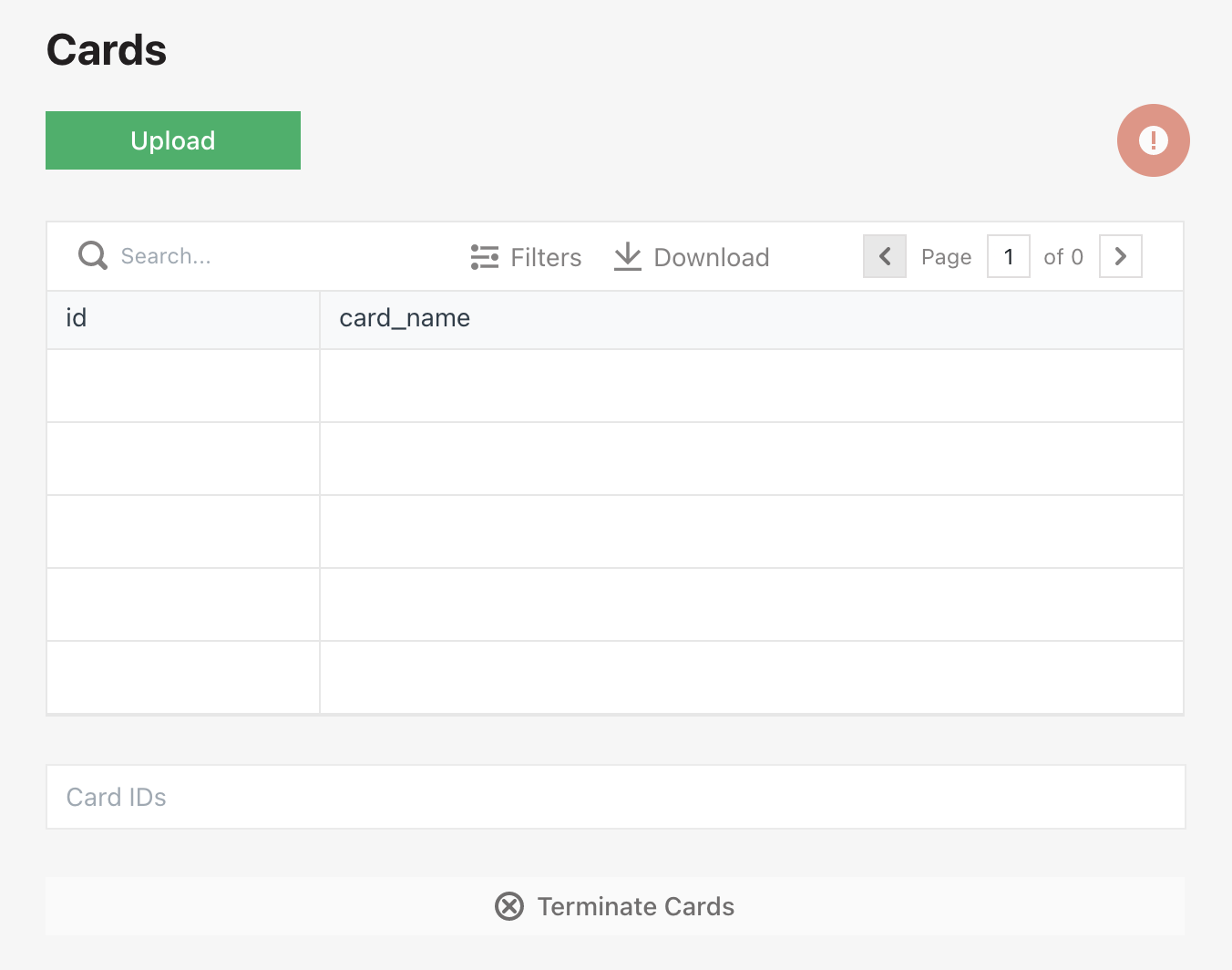

cards-page-design

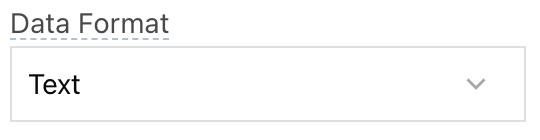

Make sure the Data Format property is set to Text for each file picker:

fp-text

Users

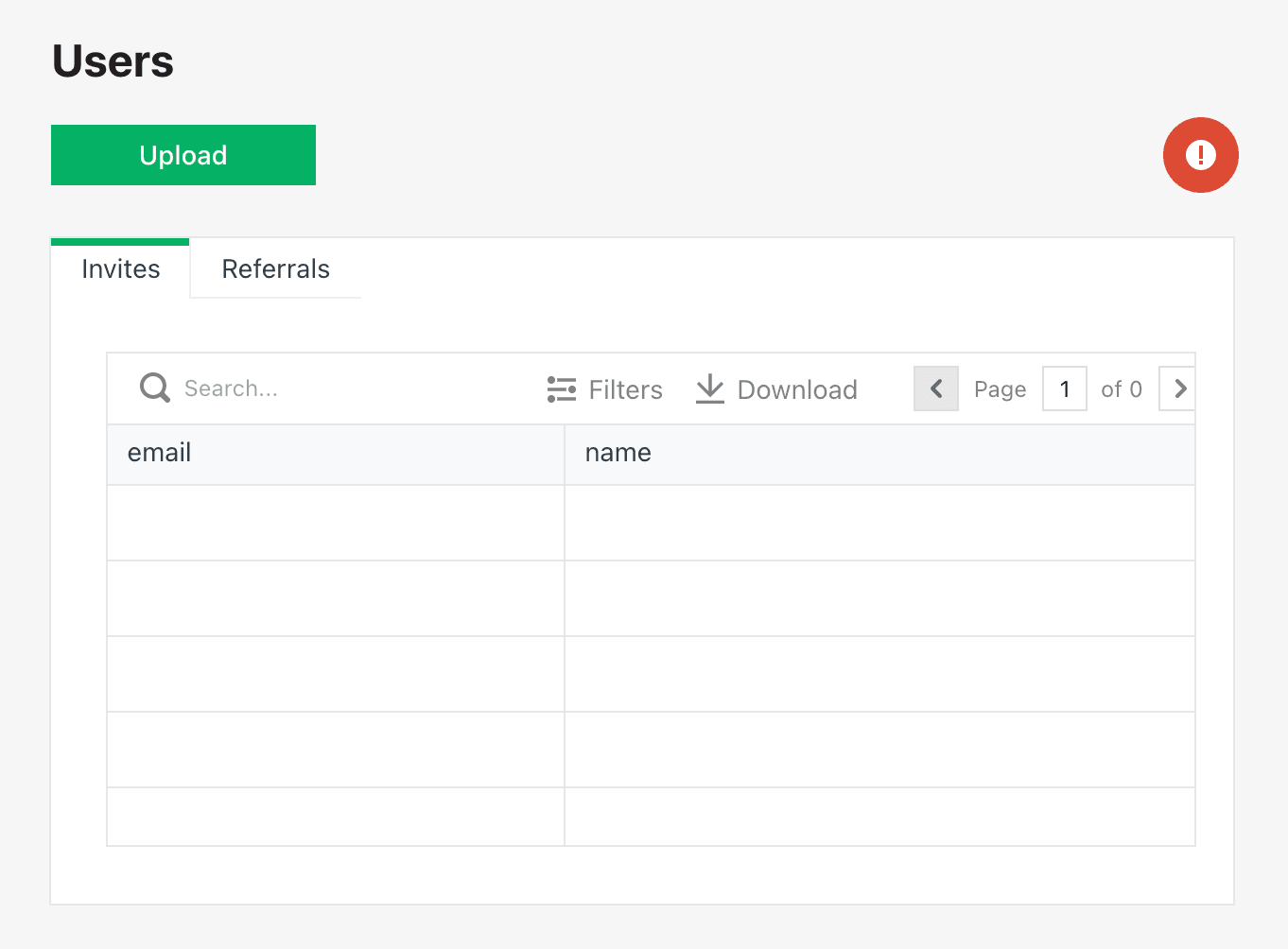

The Users page has a Tabs widget with two tabs, one for invites and one for referrals. You can drag each Table widget into the appropriate tab.

users-page-design

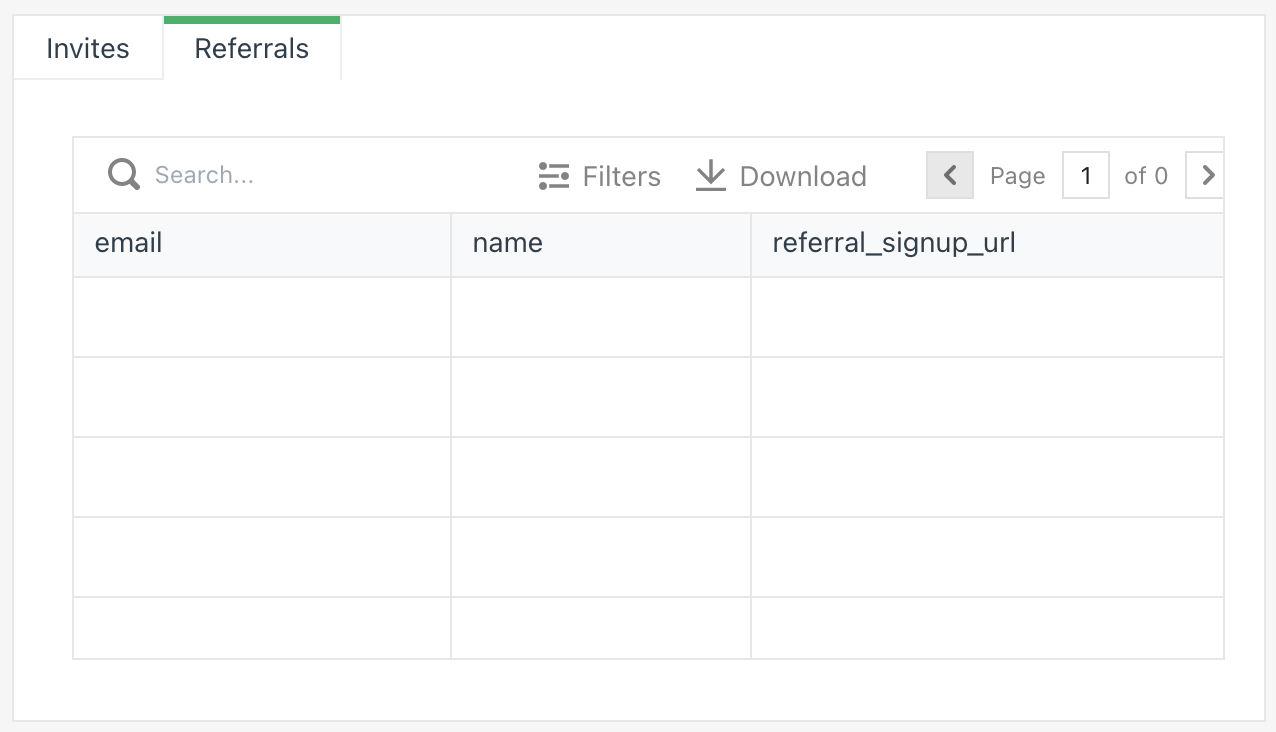

The Referrals tab:

users-page-referrals

Vendors

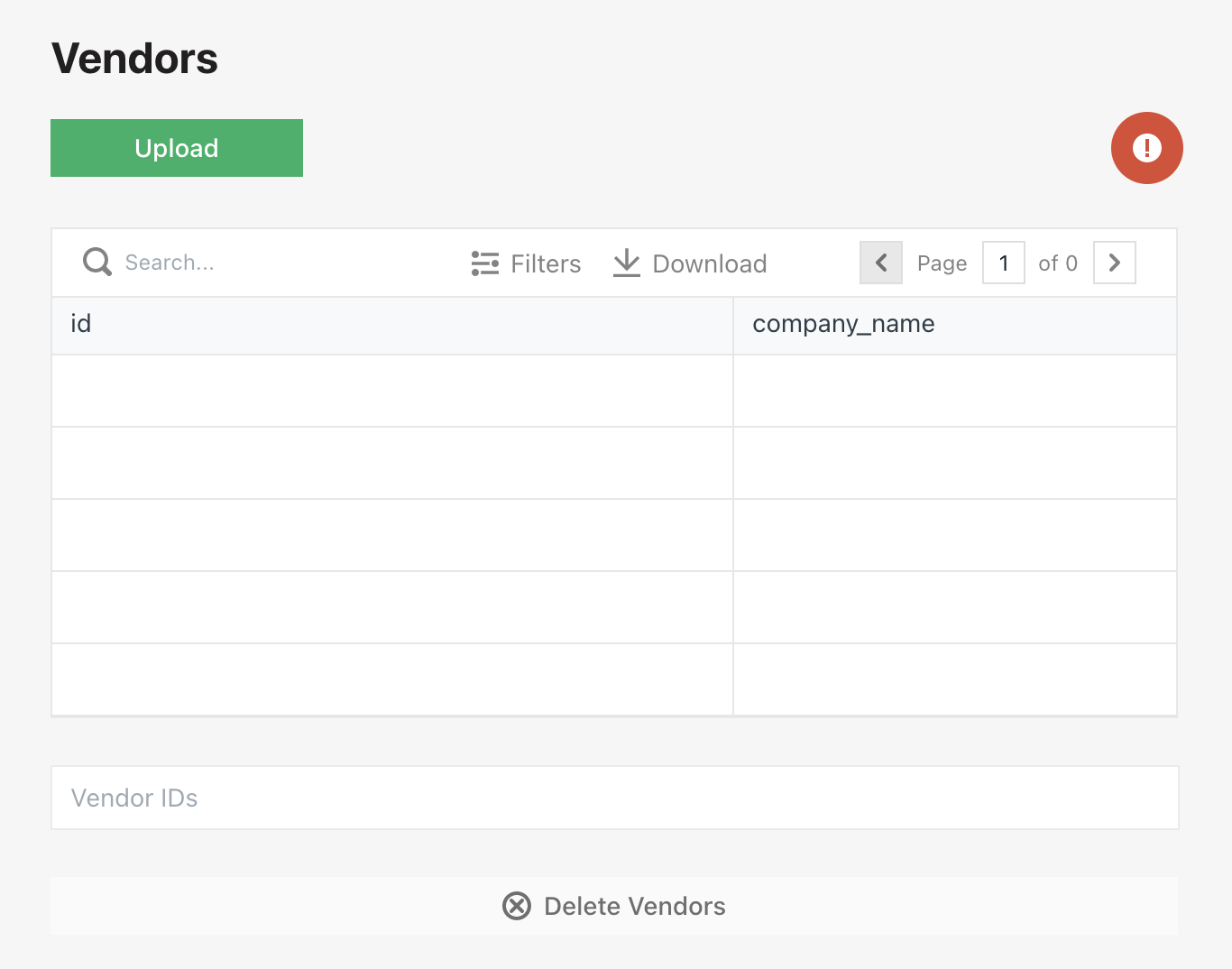

The Vendors page is almost identical to the Cards page. In fact, you can select every widget on the Cards page and copy/paste them onto the Vendors page. Of course, you'll also need to adjust the widget properties and table data.

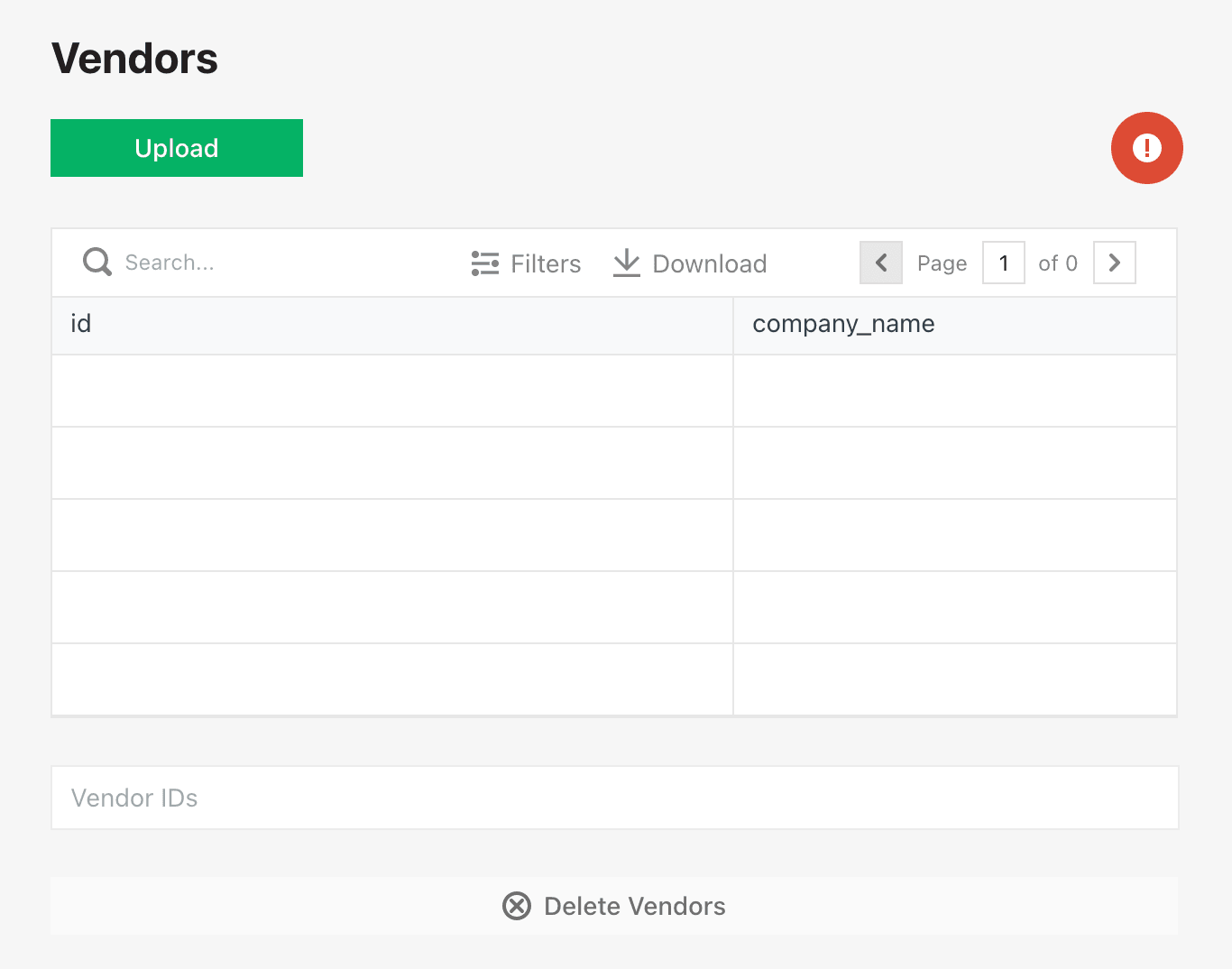

vendors-page-design

Application Logic

Our application is starting to take shape. We now have an end-to-end skeleton system. Next, we'll incrementally add functionality to each page, incorporating the query objects we created earlier. We'll also learn about JS Objects, which allow us to define handler functions that we can bind to the page widgets.

Page Load

Earlier, we created a few query objects to run on page load. Now, we'll use them to populate our table widgets. As stated in Running APIs on Page Load, "If we connect an API response to a widget, Appsmith automatically runs that API on page load..."

In effect, this means that binding {{get_cards.data.items}} to the Table Data property for tbl_cards will populate the table. However, for this tutorial, we only need the card id and card_name fields from each card. So, we'll write some additional code to remove the unwanted fields:

COPY// bind this to tbl_cards - Table Data property
get_cards.data.items
 .filter(card => card.status == "ACTIVE") // only get ACTIVE cards
 .map(card => ({ id: card.id, card_name: card.card_name }))

Likewise, we initialize tbl_invites and tbl_vendors:

COPY// bind this to tbl_invites - Table Data property
get_users.data.items
 .filter(item => item.status == "INVITED") // only get INVITED users
 .map(item => ({ email: item.email, name: `${item.first_name} ${item.last_name}` }))

// bind this to tbl_vendors - Table Data property
get_vendors.data.items.map(vendor => ({ id: vendor.id, company_name: vendor.company_name }))

JS Objects

In earlier versions of Appsmith, there was only support for writing small code snippets to data bind page widgets. But, Appsmith now supports JS Objects, which enable multi-line JavaScript code and reusable functions.

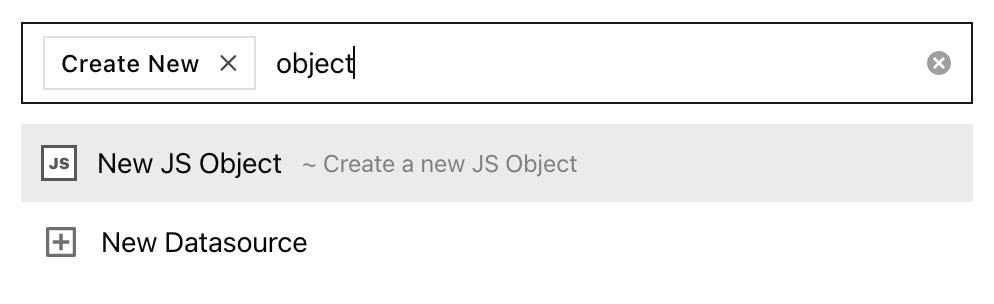

To create a new JS Object, click the + icon next to the QUERIES/JS menu option, and find the New JS Object option.

new-js-object

Create an object for each page: cards_object, users_object, and vendors_object.

Cards

Replace the contents of cards_object with the following code:

COPYexport default {
   upload: () => {
       showAlert('Cards created!', 'success');
   }
}

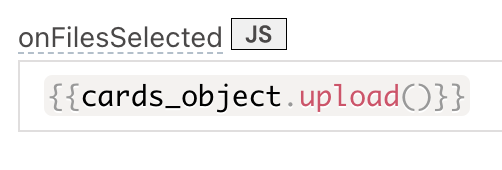

We'll revisit this code shortly. At the moment, let's go back to the page editor and bind {{cards_object.upload()}} to the file picker's onFilesSelected event:

create-card-filepicker

If you are curious, deploy the application and upload a file to the Cards page. You should receive a Cards created! notification.

The cards_object.upload method will leverage the create_card query to issue virtual cards. To follow along here, you'll need your Brex cuuser ID, which you can obtain by running the get_current_user query. Place your ID into a CSV file, formatted like this:

COPYcard_name,user_id
Michael Collins,cuuser...

Later on, we'll upload this file to the Cards page.

Reading CSV Files

The following code will read lines from a CSV file, assuming that your file picker is called fp_cards:

COPY// get the first uploaded file
const csv_file = fp_cards.files[0];

// collect each line from the csv file
const csv_lines = csv_file.data.split("\n");

// omit csv header and blank lines
const rows = csv_lines.slice(1).filter(row => row.length > 0);

Simplified:

COPYconst rows = fp_cards.files[0].data.split("\n")
                    .slice(1).filter(row => row.length > 0);

Iterating API Calls

To smoothen the discussion around asynchronous code and JavaScript promises, we'll be using a helper function called loop to iterate API calls. For reference, the full loop implementation is here, but we'll strictly focus on understanding its usage:

COPY// visit each row
return cards_object.loop({
 collection: rows, // assign rows as the collection
 onReadLine: () => {
   // do this on every row
 },
 onEnd: () => {
   // do this after the loop ends
 }
})

The loop helper calls onReadLine once per row. On each loop iteration, we can pass card_name and user_id into create_card.run():

COPYonReadLine: (card_name, user_id) => {
 // be sure to always return the promise,
 // otherwise this will not behave as expected
 return create_card.run({ card_name, user_id });
}

When the loop ends, we report the number of cards created successfully, and then call get_cards.run so that the new items appear in tbl_cards:

COPYonEnd: () => {
 const count = appsmith.store.success_count;
 if (count > 0) {
   showAlert(`${count} cards created!`, "success");
 }
 get_cards.run();
}

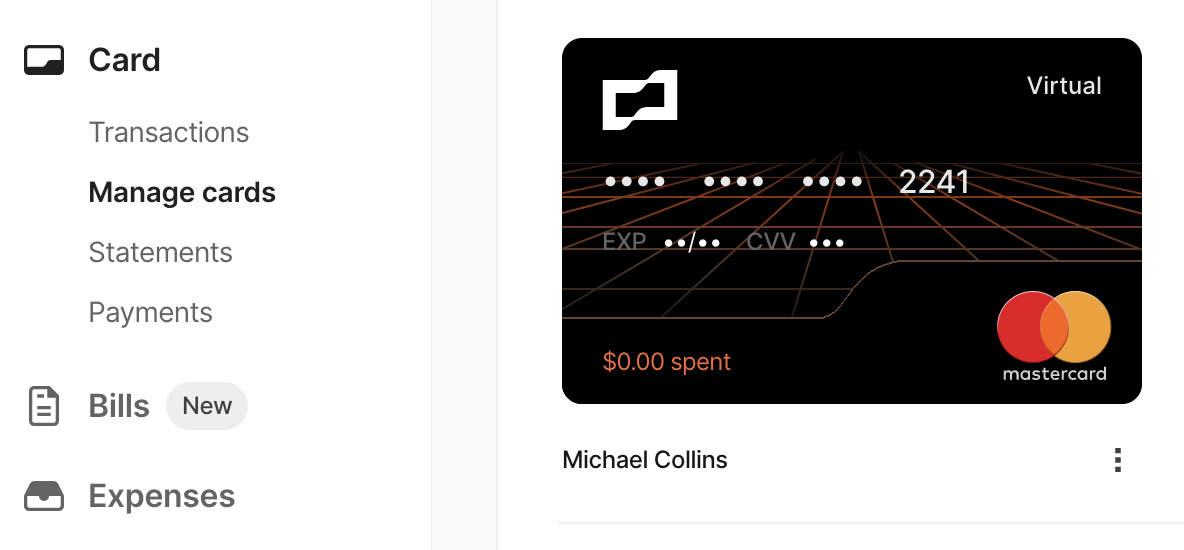

Once you re-deploy the application and upload a valid CSV file, your card will show in the Brex dashboard, under Card > Manage cards:

michaels-card

Last, but not least, we have cards_object.terminate. Bind this method to btn_terminate_cards - onClick event:

COPYterminate: () => {
   // clear variables
   cards_object.reset();

   // get comma-separated values from the textbox
   const rows = txt_card_ids.text.split(",").map((id) => id.trim());

   // visit each row, terminate card
   return cards_object.loop({
     collection: rows,
     onReadLine: (card_id) => {
       return terminate_card.run({ card_id });
     },
     onEnd: () => {
       const count = appsmith.store.success_count;
       if (count > 0) {
         showAlert(`${count} cards terminated!`, "success");
       }
       get_cards.run();
     },
   });
 }

Users

The Users page involves many of the same techniques and concepts discussed earlier. However, there are two tables involved here. We'll need to refresh one of the tables, depending on whether the CSV file is intended for referrals or invites.

I should mention that an invite asks someone to join your Brex account as a team member, whereas a referral prompts someone to sign up for their own Brex account.

Invites vs Referrals

Creating an invite sends an email to the recipient:

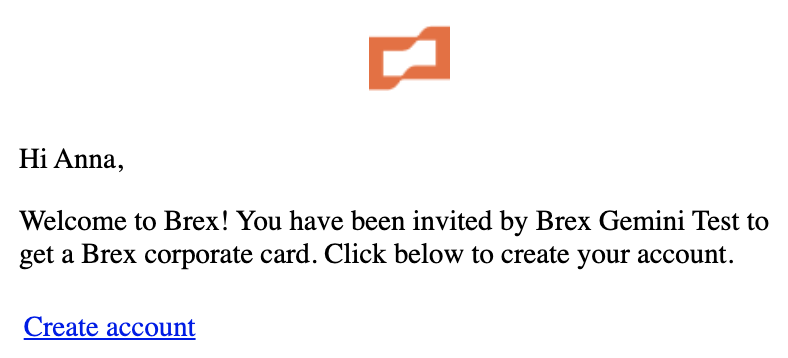

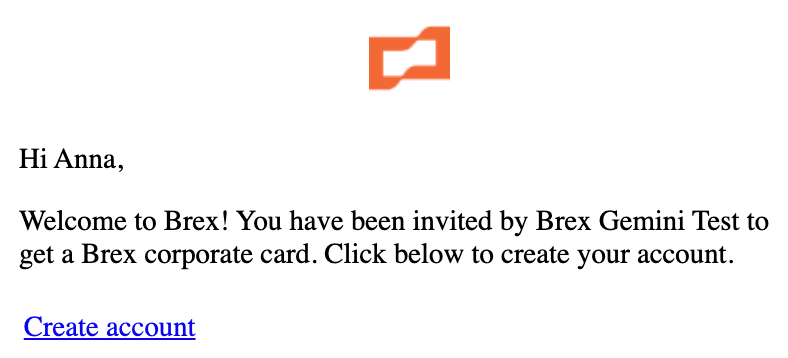

brex-invite

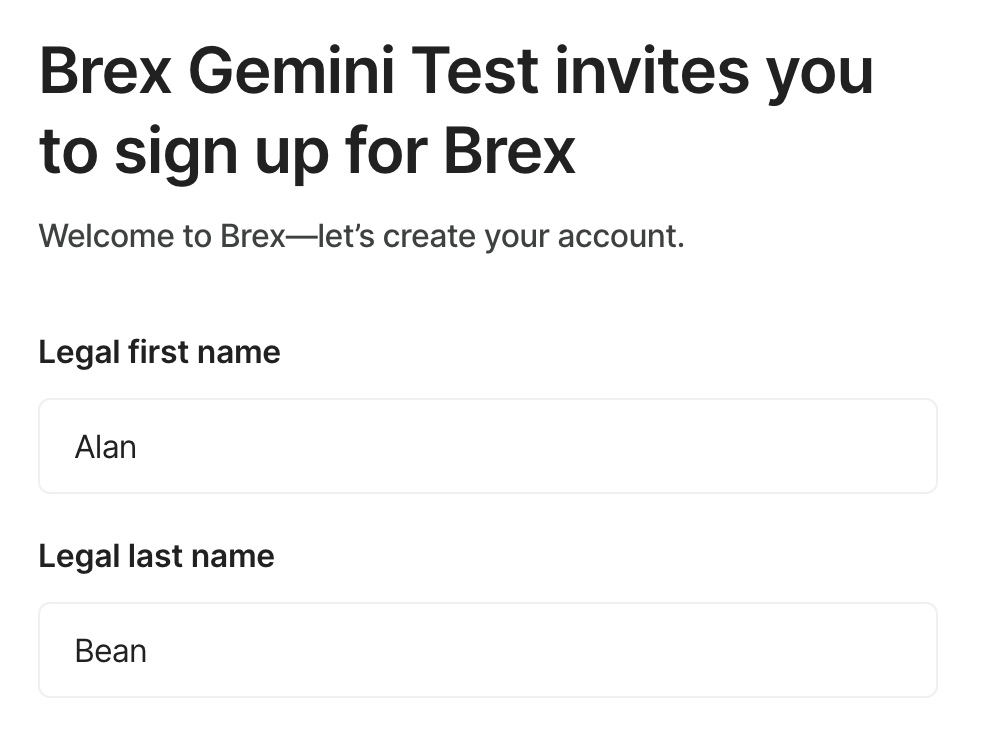

On the other hand, creating a referral generates a personalized invite link to an onboarding flow. You can find your referral code at dashboard.brex.com/referrals. When the prospect visits their personalized link, they will see a pre-filled form containing data values sent through the Create referral API call:

brex-referral

When the CSV file is uploaded, we can inspect the header row to determine if the file contains referrals or not - referrals have a referral_code column while invites do not:

COPY// invites csv header: "first_name,last_name,email"
// referrals csv header: "referral_code,first_name,last_name,email"
let is_referral = rows[0].indexOf("referral_code,") == 0;

// ...

return is_referral
       ? users_object.createReferrals(rows)
       : users_object.createInvites(rows)

For brevity, the full implementation code is shown here.

Referral Data Store

Something to note about the Create referral endpoint is that it returns the referral id and the referral_signup_url, but it does not return the applicant details (first name, last name, and email). Instead, the API consumer is expected to store and handle their own Brex referrals securely, as they contain sensitive information about the applicant.

Why do we need a data store?

At first glance, this might seem trivial. Perhaps, we don't need a referral data store. Maybe we could just create the referrals and then use the List referrals endpoint to load the recent items. However, the List referrals endpoint does not return any applicant information either.

So, by design, we need the data store to establish a link between the applicant details (passed into create_referral) and the referral id (returned from create_referral).

Without a data store, it's also not possible to seed tbl_referrals on page load. The List referrals endpoint doesn't return any applicant information, so we need to query the data store instead and then use that response data to populate tbl_referrals.

Implementing the data store

I'm using a serverless database (Fauna) to host the data store for this tutorial, but the type of database you use is unimportant. It is only important that the data store is accessible via a REST API, so that we can easily connect to the data source and create query objects:

QueryEndpointadd_referralgraphql.us.fauna.com/graphqlget_referralsgraphql.us.fauna.com/graphql

Fauna exposes a GraphQL API. Please see the the wiki for more details about this as it relates to add_referral and get_referrals.

Storing the referral data

Now that the data store is in place, we can persist the referral id and referral_signup_url along with the applicant information:

COPY// get response data and csv row
onSuccess: ({ id, referral_signup_url }, row) => {
 // get applicant info from the row
 const [referral_code, first_name, last_name, email] = row;
 // store the referral data
 add_referral.run({
   id,
   name: `${first_name} ${last_name}`,
   email,
   referral_signup_url,
 });
},

Get referrals on page load

Also, remember to configure get_referrals to run on page load:

COPY// bind this to tbl_referrals - Table Data property
get_referrals.data &&
get_referrals.data.data &&
get_referrals.data.data.allReferrals.data

Vendors

Implementation of the Vendors page is left as an exercise for the reader. Here are some things to keep in mind:

  1. The fp_vendors file picker needs an event handler for onFilesSelected.
  2. The create_vendor query object has a company_name parameter.
  3. The delete_vendor query object has a vendor_id parameter.
  4. Bind {{appsmith.store.vendors_arr}} to tbl_vendors.
  5. Uploading vendors.csv should create three new vendors in your Brex dashboard.

The full vendors_object implementation is here. You can also create multiple vendors by using the bulk upload tool in your Brex dashboard.

Error Handling

Thus far, we've only explored the happy path. If we return to the Cards page and upload cards.invalid-user-id.csv the create_card query will fail. Thankfully, Appsmith will handle this exception and display an error message.

fail-create_card

But, imagine if you were to upload the following CSV file:

COPYcard_name,user_id
Space Mountain,invalid-user-id
Cargo Dragon,cuuser...
Planet Express,invalid-user-id

In this case, the API call would fail on Space Mountain and Planet Express, but the default error handling would not be able to detect which rows failed. To correct this, we'll need to implement the error handling ourselves.

During cards_object.loop(), whenever onReadLine fails, the onError function will trigger. We can implement onError to display a message:

COPYonError: ({ row }) => {
 const [card_name] = row;
 const message = `failed to create card "${card_name}"`;
 showAlert(message, "error");
 return message; // return message to the loop helper
}

The loop helper also keeps track of errors. There's a has_errors flag, which is a boolean that indicates when any errors have occurred. There is also an errors_arr collection where we store each error message for later display in tbl_errors.

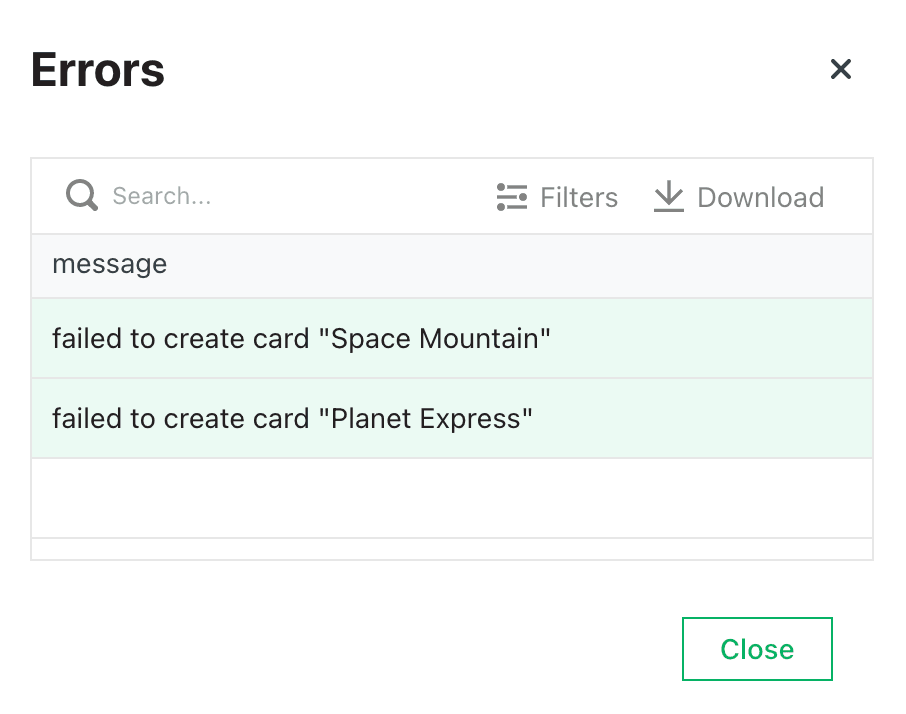

The has_errors flag will determine if the red Icon Button is visible. Set its Visible property to {{appsmith.store.has_errors}}. Also bind its onClick handler to {{showModal("error_modal")}}. This button will launch a Modal that contains a table bound to {{appsmith.store.errors_arr}}:

error-modal

Conclusion

The beauty of Appsmith is that you can migrate this application to your own workspace and repurpose it for your own needs. Here, we've touched on a few Brex API endpoints. We've also learned how to create an Appsmith dashboard that allows Brex admins to create and terminate Brex cards and refer and invite Brex users.

I encourage Brex admins to build and share custom Appsmith workflows that tap into the Brex APIs. There is much value in simplifying the development process where we can. Low code tools like Appsmith can provide practical advantages to Brex admins who need them, but they can also change the perspectives and attitudes of those who do not.

The views expressed in this post are my own and have not been reviewed or approved by my employer (Brex, Inc.).

Build a Low Code Brex Client to Automate Operations

Share this

Some things are fantastic together. 🍔🥤

In particular, REST APIs and Low code dovetail nicely.

Although APIs simplify development, they also demand a level of programming skill and technical ability. Low code frameworks like Appsmith can provide a visual layer on top of the API that empowers non-technical audiences and citizen developers to build client applications.

There is much value in simplifying the development process where we can. Low code works best for development projects where the problem domain is well understood and there are very few use cases. REST API clients are well suited to that extent - the API contract itself serves as a kind of blueprint for the client application. Take, for instance, the Brex APIs.

Brex offers several APIs that range from Onboarding and Payments to Teams and Transactions. Brex admins can plug into these APIs to build powerful workflows and custom automations. To demonstrate, we'll build an Appsmith dashboard that will connect to your Brex account.

Key Takeaways

  • Appsmith has a REST interface that allows us to create and modify query objects. A query object is a portable, reusable construct that defines parameters needed for a single API call. We'll use several query objects to engage the Brex APIs.
  • Building a multi-page interface with Appsmith is incredibly simple and well-documented. The platform provides a visual way to build pages using widgets and drag/drop functionality. However, unlike the global Appsmith store, page resources are page-scoped and cannot be referenced across different pages. Despite that, it is still possible to move or copy resources from one page to another.
  • We'll use JavaScript Promises to simplify asynchronous workflows. This will enable us to launch multiple API calls concurrently and then handle the responses elegantly. Normally, this is a challenge because API calls rely on the network and conclude at inexact points in time. To overcome this, we used to apply callback functions, but JavaScript Promises are an improvement over callbacks.

What are we building?

In this tutorial, we'll create an Appsmith tool that leverages the Brex APIs to perform bulk operations on your Brex account. By uploading a CSV file, you'll be able to create credit cards, users, and vendors. These changes will be reflected in your Brex dashboard immediately. Our tool will also support terminating cards and deleting vendors.

As it is not intended for production use, this application doesn't attempt to be either complete or systematic. It is more like a demo project. Rather than serve as a proper software solution, the final application is meant to demonstrate what is possible using Appsmith and the Brex APIs.

For context, this tutorial depicts the reader as a fictional Brex customer in order to provide a frame of reference and bring meaning to the sample CSV files. Pretend that you are an outer space company that issues Brex credit cards to your colleagues. The cardholders have personal cards as well as other cards designated for expenses such as Equipment Repairs, Launch Services, and Telecom. You will also define fictional Vendors: General Atomics, Orbital Transport Services, Space Food Systems. Let's suppose you are building this application to automate a few back office operations. You have chosen to build it using Appsmith.

What do I need?

First, you'll want to sign into Appsmith and create a new application. Next, sign in to your Brex account and generate a user token with Read/Write permissions for Cards, Referrals, Users, and Vendors. Appsmith will use this token to authorize API calls.

To confirm that your token is working, you can perform a quick sanity check with curl:

COPYcurl --request GET 'https://platform.brexapis.com/v2/users/me' \
--header 'Authorization: Bearer <your-token>'

The response will resemble the following:

COPY{
   "id": "cuuser...",
   "first_name": "Michael",
   "last_name": "Collins",
   "email": "mcollins@example.com",
   "status": "ACTIVE"
}

Postman

Alternatively, you can use Postman to test API calls. In fact, the Brex Developer workspace allows you to experiment with every endpoint documented in the Brex Developer Portal.

Appsmith Echo API

Consider using the Appsmith Echo API to spare production API calls.

COPY[POST] https://mock-api.appsmith.com/echo/post

While testing your Appsmith tool, sometimes you will need to invoke non-idempotent API endpoints such as Create card and Invite user. Instead of exercising the live endpoints, you can create an API datasource that relies on the Appsmith Echo API:

COPYfor(let i = 0; i < 5; i++) {
  echo_post.run(onSuccess, onError, params);
}

To mock HTTP status codes and errors, you might try httpstat.us.

Disposable Inbox

For testing user invites, I recommend a disposable email system like Mailinator or Temp Mail.

Git Repo

There's a companion repo that contains sample CSV files and supporting JavaScript code for this tutorial. You can also use Appsmith's Import-Export feature to migrate the demo application to your own account.

Brex APIs

The base URL for all Brex APIs is https://platform.brexapis.com.

  1. Use this URL to create an authenticated API datasource called brex-prod.
  2. Select Bearer Token for the Authentication Type.
  3. Supply your Brex user token.
  4. Click Save.

You should now have a datasource that we can use to create Queries.

New query objects will show in the left side panel, under QUERIES/JS. For example, here I've created a query for the Get current user endpoint:

get-current-user-api-pane

Now, you can create new query objects from the brex-prod datasource. The following search box will appear when you click the + icon next to the QUERIES/JS menu option:

brex-prod-datasource

Going forward, we'll create several queries to support our application.

Onboarding API

The Onboarding API allows you to refer your customers and personal contacts to Brex. You might use the Create referral endpoint as part of the Brex Referral Program.

Unlike the Get current user endpoint, Create referral is a POST endpoint that requires a JSON body.

create-referral-json-body

Later on, we'll discuss this.params. For now, understand that it is possible to run the create_referral query object and pass parameters into it, like so:

COPYconst params = { referral_code, email, first_name, last_name };
return create_referral.run(params); // always return the promise

Team API

The Team API lets you manage users, departments, locations, and cards. For this example, we'll manage users and cards, starting with the Invite user endpoint, which allows you to invite a new team member as an employee. Through the dashboard, Brex admins can assign various role types to the employee, but team members created through this endpoint will bear the Employee role type by default.

Your invite_user query object will POST to /v2/users. The request body should match the following:

COPY{
   "first_name": {{this.params.first_name}},
   "last_name": {{this.params.last_name}},
   "email": {{this.params.email}}
}

Idempotency

Under the Headers tab, be sure to generate a random string value for the Idempotency-Key:

idempotency-key

Idempotency is well beyond the scope of this tutorial. But, in short, the idempotency key ensures that the API server will only process a non-idempotent request once.

For a moment, consider network interruptions that may cause downstream services (or even the application itself) to perform a retry. Without an idempotency, the server would attempt to process the same request again. The idempotency key helps the API server keep track of whether the operation was already performed or not.

Notice that the code to generate the Idempotency-Key includes a reference to Lodash: _.random(1000). Lodash, among other libraries, is built into the Appsmith platform, which is super handy.

Create Card

The create_card query object also requires an Idempotency-Key, and will POST to /v2/cards. The request body is:

COPY{
   "owner": {
       "type": "USER",
       "user_id": {{this.params.user_id}}
   },
   "card_name": {{this.params.card_name}},
   "card_type": "VIRTUAL",
   "limit_type": "USER"
}

The Create card endpoint also accepts other parameters, card types, and limit types, so check out the developer docs. There's also a spend_controls parameter that allows you to define a spend limit for the card. This limit can be set to refresh each month, quarter, year, or never (for one-time use).

Terminate Card

We can also reference {{this.params...}} in the query object URL. For example, the terminate_card query object will POST to the Terminate card endpoint, which has a URI parameter, {{this.params.card_id}}:

COPY/v2/cards/{{this.params.card_id}}/terminate

The request body for terminate_card:

COPY{
 "description": "demo",
 "reason": "OTHER"
}

There are also other reason codes such as CARD_LOST, CARD_NOT_RECEIVED and FRAUD, but for this example, we'll stick with OTHER.

Note that the Idempotency-Key is not required, because card termination is idempotent by definition. In other words, terminating a card multiple times has the same effect as terminating a card once.

Payments API

The Payments API allows you to initiate and manage payments and vendors from your Brex Cash account. We'll use the Create vendor endpoint as an example. In a production application, you would also include vendor payment information to enable ACH, wire, or cheque payments from your Brex Cash account. But, for this example, we'll omit the vendor's payment type. You can also add vendor payment information from the dashboard - How do I manage my vendors on Brex Cash?

Create Vendor

The create_vendor query object will POST to /v1/vendors. This endpoint requires an Idempotency-Key and the request body is:

COPY{
  "company_name": {{this.params.company_name}}
}

Delete Vendor

The delete_vendor query object will send DELETE requests to /v1/vendors/{{this.params.vendor_id}}. There is no request body.

Initial Data Loading

The following query objects will enable us to populate tables on page load. To ensure that Appsmith pulls the initial dataset each time, you can configure each query object to run on page load:

QueryEndpointget_cardsList cardsget_usersList usersget_vendorsList vendors

This option is located under the Settings tab inside the query object:

query-settings

Appsmith Pages

The goal of our app is to provide a user-friendly way to create Brex credit cards, vendors, invites, and referrals. In this section, we'll envision the page layout and breifly touch on a few key points. You'll use a drag/drop interface to build the UI. But, before we get started:

  1. Rename Page1 to Cards.
  2. Add a page for Users and another page for Vendors.
  3. Move get_users, create_referral and invite_user from the Cards page to the Users page.
  4. Move get_vendors, create_vendor and delete_vendor to the Vendors page.

Now that our work is cut out, we'll begin creating each page.

Cards

Use the Appsmith widgets to create the following page to your ability. Note that the green Upload widget is a file picker, not a button.

cards-page-design

Make sure the Data Format property is set to Text for each file picker:

fp-text

Users

The Users page has a Tabs widget with two tabs, one for invites and one for referrals. You can drag each Table widget into the appropriate tab.

users-page-design

The Referrals tab:

users-page-referrals

Vendors

The Vendors page is almost identical to the Cards page. In fact, you can select every widget on the Cards page and copy/paste them onto the Vendors page. Of course, you'll also need to adjust the widget properties and table data.

vendors-page-design

Application Logic

Our application is starting to take shape. We now have an end-to-end skeleton system. Next, we'll incrementally add functionality to each page, incorporating the query objects we created earlier. We'll also learn about JS Objects, which allow us to define handler functions that we can bind to the page widgets.

Page Load

Earlier, we created a few query objects to run on page load. Now, we'll use them to populate our table widgets. As stated in Running APIs on Page Load, "If we connect an API response to a widget, Appsmith automatically runs that API on page load..."

In effect, this means that binding {{get_cards.data.items}} to the Table Data property for tbl_cards will populate the table. However, for this tutorial, we only need the card id and card_name fields from each card. So, we'll write some additional code to remove the unwanted fields:

COPY// bind this to tbl_cards - Table Data property
get_cards.data.items
 .filter(card => card.status == "ACTIVE") // only get ACTIVE cards
 .map(card => ({ id: card.id, card_name: card.card_name }))

Likewise, we initialize tbl_invites and tbl_vendors:

COPY// bind this to tbl_invites - Table Data property
get_users.data.items
 .filter(item => item.status == "INVITED") // only get INVITED users
 .map(item => ({ email: item.email, name: `${item.first_name} ${item.last_name}` }))

// bind this to tbl_vendors - Table Data property
get_vendors.data.items.map(vendor => ({ id: vendor.id, company_name: vendor.company_name }))

JS Objects

In earlier versions of Appsmith, there was only support for writing small code snippets to data bind page widgets. But, Appsmith now supports JS Objects, which enable multi-line JavaScript code and reusable functions.

To create a new JS Object, click the + icon next to the QUERIES/JS menu option, and find the New JS Object option.

new-js-object

Create an object for each page: cards_object, users_object, and vendors_object.

Cards

Replace the contents of cards_object with the following code:

COPYexport default {
   upload: () => {
       showAlert('Cards created!', 'success');
   }
}

We'll revisit this code shortly. At the moment, let's go back to the page editor and bind {{cards_object.upload()}} to the file picker's onFilesSelected event:

create-card-filepicker

If you are curious, deploy the application and upload a file to the Cards page. You should receive a Cards created! notification.

The cards_object.upload method will leverage the create_card query to issue virtual cards. To follow along here, you'll need your Brex cuuser ID, which you can obtain by running the get_current_user query. Place your ID into a CSV file, formatted like this:

COPYcard_name,user_id
Michael Collins,cuuser...

Later on, we'll upload this file to the Cards page.

Reading CSV Files

The following code will read lines from a CSV file, assuming that your file picker is called fp_cards:

COPY// get the first uploaded file
const csv_file = fp_cards.files[0];

// collect each line from the csv file
const csv_lines = csv_file.data.split("\n");

// omit csv header and blank lines
const rows = csv_lines.slice(1).filter(row => row.length > 0);

Simplified:

COPYconst rows = fp_cards.files[0].data.split("\n")
                    .slice(1).filter(row => row.length > 0);

Iterating API Calls

To smoothen the discussion around asynchronous code and JavaScript promises, we'll be using a helper function called loop to iterate API calls. For reference, the full loop implementation is here, but we'll strictly focus on understanding its usage:

COPY// visit each row
return cards_object.loop({
 collection: rows, // assign rows as the collection
 onReadLine: () => {
   // do this on every row
 },
 onEnd: () => {
   // do this after the loop ends
 }
})

The loop helper calls onReadLine once per row. On each loop iteration, we can pass card_name and user_id into create_card.run():

COPYonReadLine: (card_name, user_id) => {
 // be sure to always return the promise,
 // otherwise this will not behave as expected
 return create_card.run({ card_name, user_id });
}

When the loop ends, we report the number of cards created successfully, and then call get_cards.run so that the new items appear in tbl_cards:

COPYonEnd: () => {
 const count = appsmith.store.success_count;
 if (count > 0) {
   showAlert(`${count} cards created!`, "success");
 }
 get_cards.run();
}

Once you re-deploy the application and upload a valid CSV file, your card will show in the Brex dashboard, under Card > Manage cards:

michaels-card

Last, but not least, we have cards_object.terminate. Bind this method to btn_terminate_cards - onClick event:

COPYterminate: () => {
   // clear variables
   cards_object.reset();

   // get comma-separated values from the textbox
   const rows = txt_card_ids.text.split(",").map((id) => id.trim());

   // visit each row, terminate card
   return cards_object.loop({
     collection: rows,
     onReadLine: (card_id) => {
       return terminate_card.run({ card_id });
     },
     onEnd: () => {
       const count = appsmith.store.success_count;
       if (count > 0) {
         showAlert(`${count} cards terminated!`, "success");
       }
       get_cards.run();
     },
   });
 }

Users

The Users page involves many of the same techniques and concepts discussed earlier. However, there are two tables involved here. We'll need to refresh one of the tables, depending on whether the CSV file is intended for referrals or invites.

I should mention that an invite asks someone to join your Brex account as a team member, whereas a referral prompts someone to sign up for their own Brex account.

Invites vs Referrals

Creating an invite sends an email to the recipient:

brex-invite

On the other hand, creating a referral generates a personalized invite link to an onboarding flow. You can find your referral code at dashboard.brex.com/referrals. When the prospect visits their personalized link, they will see a pre-filled form containing data values sent through the Create referral API call:

brex-referral

When the CSV file is uploaded, we can inspect the header row to determine if the file contains referrals or not - referrals have a referral_code column while invites do not:

COPY// invites csv header: "first_name,last_name,email"
// referrals csv header: "referral_code,first_name,last_name,email"
let is_referral = rows[0].indexOf("referral_code,") == 0;

// ...

return is_referral
       ? users_object.createReferrals(rows)
       : users_object.createInvites(rows)

For brevity, the full implementation code is shown here.

Referral Data Store

Something to note about the Create referral endpoint is that it returns the referral id and the referral_signup_url, but it does not return the applicant details (first name, last name, and email). Instead, the API consumer is expected to store and handle their own Brex referrals securely, as they contain sensitive information about the applicant.

Why do we need a data store?

At first glance, this might seem trivial. Perhaps, we don't need a referral data store. Maybe we could just create the referrals and then use the List referrals endpoint to load the recent items. However, the List referrals endpoint does not return any applicant information either.

So, by design, we need the data store to establish a link between the applicant details (passed into create_referral) and the referral id (returned from create_referral).

Without a data store, it's also not possible to seed tbl_referrals on page load. The List referrals endpoint doesn't return any applicant information, so we need to query the data store instead and then use that response data to populate tbl_referrals.

Implementing the data store

I'm using a serverless database (Fauna) to host the data store for this tutorial, but the type of database you use is unimportant. It is only important that the data store is accessible via a REST API, so that we can easily connect to the data source and create query objects:

QueryEndpointadd_referralgraphql.us.fauna.com/graphqlget_referralsgraphql.us.fauna.com/graphql

Fauna exposes a GraphQL API. Please see the the wiki for more details about this as it relates to add_referral and get_referrals.

Storing the referral data

Now that the data store is in place, we can persist the referral id and referral_signup_url along with the applicant information:

COPY// get response data and csv row
onSuccess: ({ id, referral_signup_url }, row) => {
 // get applicant info from the row
 const [referral_code, first_name, last_name, email] = row;
 // store the referral data
 add_referral.run({
   id,
   name: `${first_name} ${last_name}`,
   email,
   referral_signup_url,
 });
},

Get referrals on page load

Also, remember to configure get_referrals to run on page load:

COPY// bind this to tbl_referrals - Table Data property
get_referrals.data &&
get_referrals.data.data &&
get_referrals.data.data.allReferrals.data

Vendors

Implementation of the Vendors page is left as an exercise for the reader. Here are some things to keep in mind:

  1. The fp_vendors file picker needs an event handler for onFilesSelected.
  2. The create_vendor query object has a company_name parameter.
  3. The delete_vendor query object has a vendor_id parameter.
  4. Bind {{appsmith.store.vendors_arr}} to tbl_vendors.
  5. Uploading vendors.csv should create three new vendors in your Brex dashboard.

The full vendors_object implementation is here. You can also create multiple vendors by using the bulk upload tool in your Brex dashboard.

Error Handling

Thus far, we've only explored the happy path. If we return to the Cards page and upload cards.invalid-user-id.csv the create_card query will fail. Thankfully, Appsmith will handle this exception and display an error message.

fail-create_card

But, imagine if you were to upload the following CSV file:

COPYcard_name,user_id
Space Mountain,invalid-user-id
Cargo Dragon,cuuser...
Planet Express,invalid-user-id

In this case, the API call would fail on Space Mountain and Planet Express, but the default error handling would not be able to detect which rows failed. To correct this, we'll need to implement the error handling ourselves.

During cards_object.loop(), whenever onReadLine fails, the onError function will trigger. We can implement onError to display a message:

COPYonError: ({ row }) => {
 const [card_name] = row;
 const message = `failed to create card "${card_name}"`;
 showAlert(message, "error");
 return message; // return message to the loop helper
}

The loop helper also keeps track of errors. There's a has_errors flag, which is a boolean that indicates when any errors have occurred. There is also an errors_arr collection where we store each error message for later display in tbl_errors.

The has_errors flag will determine if the red Icon Button is visible. Set its Visible property to {{appsmith.store.has_errors}}. Also bind its onClick handler to {{showModal("error_modal")}}. This button will launch a Modal that contains a table bound to {{appsmith.store.errors_arr}}:

error-modal

Conclusion

The beauty of Appsmith is that you can migrate this application to your own workspace and repurpose it for your own needs. Here, we've touched on a few Brex API endpoints. We've also learned how to create an Appsmith dashboard that allows Brex admins to create and terminate Brex cards and refer and invite Brex users.

I encourage Brex admins to build and share custom Appsmith workflows that tap into the Brex APIs. There is much value in simplifying the development process where we can. Low code tools like Appsmith can provide practical advantages to Brex admins who need them, but they can also change the perspectives and attitudes of those who do not.

The views expressed in this post are my own and have not been reviewed or approved by my employer (Brex, Inc.).

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

  • xvcmbmvkmnkmbknmbkmlnj
  • A rich text element can be used with static or dynamic content. For static content, just drop it

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

  1. A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

ksnopirirfnb [aorewmb[oiewsn b[opebr
  1. then connect a rich text

dfbstjsrykmsry

Square
Try Appsmith
Debugging your apps in Appsmith with the Appsmith Debugger, part 2
27
September
2022
Product

Debugging your apps in Appsmith with the Appsmith Debugger, part 2

Debugging your apps in Appsmith with the Appsmith Debugger, part 2
Ayush Pahwa
0
 minutes ↗
#
product
#
errors
#
troubleshooting
#
debugger
Product
Meet the sidekicks, Logs and Inspect Entity

The first part of this teardown helped you see how the Error pane can save you hours in debugging and build better internal apps. In this one, let’s meet two seemingly innocuous features that can give you debugging super-powers when used right.

Logs

The Logs pane shows you everything logged by Appsmith and, like Errors, in lockstep with the sequence of code execution in your build. Borrowing from the experience of showing logs in general—in the browser console, from a shell, or on your favorite IDE—the Logs pane has four views for specific debugging use cases.


All Logs

This view shows you all logs timestamped by when we saw them in your Appsmith session. Updated a widget’s property? Wrote a new action to your GraphQL datasource? Ran a JS Object to concat two queries? It all gets logged, including the errors you see in the Errors pane, in a separate view called Error Logs. You will see how that can be useful in a GIF, pun intended.

The All Logs view can be a little overwhelming, though, and a bit of work when you have been at your build for a while. For easier tracking of relevant logs, use one of the three options below.


Errors Logs

Everything you learned about the Errors pane applies to this view, too, but there’s more to this view. Here's a likely scenario to show that.

State #1

You have a button to reload a table, presumably to refresh the data from your datasource.

Condition #1

You use the Button property, onClick, which runs the query to fetch the latest data into the table.

Scenario #1

Your query fails.

- On just the Error pane

  • You see just the error for the failing query. Although helpful, it doesn’t offer context for the before and after of the error.

- On the Error Logs pane under Logs

  1. You see logs for the Button click and the executed onClick event .
  2. Because the onClick property is binded to queries and JS Objects, you see the ones that are successfully executed and those that fail.

The triaging in our example above is especially useful when you have nested queries, several dependent bindings, and a more complex workflow overall.

Console Logs


Just introduced in the Debugger, console methods in Appsmith help you see statements for just JS Objects and JavaScript bindings so much better than in the browser sub-window.

Set points in your code that you want to log statements at, view tabular data, or see groups for repeated errors.

System Logs


Automatically tracking all your interactions with Appsmith during build, System Logs show a helpful trail of activity by descending order of timestamp, especially useful when you want to go back in time or pivot from a point of failure to everything that led to it.

They show up for different situations and interactions for the type of entity you are working with.

With widgets, you see a log when you

  • Drag-and-drop a new widget on the canvas.
  • Update the widget’s properties
    Updating a property also updates all its dependent properties which then show up in System Logs.
For example, when you update the tableData property, you also see its dependent properties like selectedRowIndex, filters, triggeredRowIndex, and so on.
  • Trigger events with an end-user action.
For example, when you are using an end-user action to store a value with storeValue or when you want a click-action to trigger an operation like an update or delete and are using onClick, you see them show up in System Logs.
  • Delete a widget from the canvas

With actions, you see them when you

  • Create a new datasource or a query
  • Update query properties like queryName, queryBody, queryConfiguration, and queryProperties.
  • Execute a query
This can be either from query pane, running a plain REST API query, a JS Object, or via a widget’s bindings.
  • Delete a query

With JS Objects, you’ll see system logs when you

  • Create and update code inside JS Objects
  • Execute JS Objects

Just like errors, system logs are native to entities and have four parts to them.


The timestamp

Logged as your entities are created, updated and deleted, these little breadcrumbs help you track back from when the error occurred to when it was last A-Okay.


The message

Useful during build, the message of the log answers two questions— what were you doing with an entity—creating it, updating it, deleting it—and what happened with your action—success or failure.

  • With widgets, outside of CRUD information, you also see event-specific info like onClick and showAlert linked to those widgets.
  • Queries and JS Objects are straightforward with start and end points that indicate if they were updated, ran, and failed.

The source

Like errors, a system log has two parts to its source—the entity’s name.the type of entity, e.g., SELECT1.TABLE1.WIDGET.

👌🏽 Appsmith Experience plug

Clicking the source from the logs takes you to the associated entity anywhere in Appsmith, be it a widget, a query, or a JS Object. Noice!

The response

This doesn’t always show, but when it does, it can be useful confirmation of a binding working, a query running successfully, or a JS Object executing completely.

  • For widgets, you see which properties are updated when you are configuring them and how.
    Say you’re updating the text widget’s background property and you don’t see it change on the canvas. Track the log to the response for a quick confirmation of that and troubleshoot the canvas next.
  • For queries, you’ll see two different logs—the start of a query run and the status of its execution.
    The first type of log will show you configuration details of the query—helpful to verify if the config matches the request.

{
    "timeoutInMillisecond":10000
    "paginationType":"NONE"
    "encodeParamsToggle":true
    "body":"SELECT * FROM public."users" LIMIT 10;"
    "pluginSpecifiedTemplates":[
        0:{
            "value":true
        }
    ]
}

  • The second type will throw an error if the run fails. When the query runs successfully, it shows all the parameters that the query ran with and the time taken for the response.

{
	"response" : [...],
	"request" : {
		"actionId" "6321c1193668£71e£7caala2"
		"requestedAt" : 1663912830.640344
		"requestParams": {...}
}

  • With JS Objects, you see the response from the function as a JSON after an object is successfully run. This shows you how Appsmith handles the function while evaluating and running it and can be useful for spotting conflicts, undefined references, or troublesome variables.

Inspect Entity

Borrowing from a modern browser’s Inspect Element feature, Inspect Entity lets you see incoming and outgoing entities for any widget. These entities can be queries, JS Objects, or even other widgets.

  • Incoming entities are those that fetch data from the datasource into the widget.
    For example, if the data on a table is populated by a Postgres query, you’ll see the query name under the Incoming entities column.
  • Outgoing entities are those that can specify the data that’s to be sent to the datasource in a typical CUD operation and then send it to your datasource.
    Say, a text widget is binded to a table's selectedRow property, you will see the text widget’s name under the Outgoing entities column.

The Inspect Entity pane lets you see dependencies for all your widgets on the canvas, especially useful if you have a medium-complex app with several widgets working off of each other. For example, when you have a parent widget or query that controls bindings on other dependent widgets---call them children widgets---, Inspect Entity can show you all those children when you click the parent and quickly take you to any one of them directly.

In combination with Errors, Logs and Inspect Entity round out the Debugger for several scenarios during build and save you hours in building an app end-users love. Try out the Debugger and let us know how you like it, what it's missing, and what we can improve. Our Discord is the best place for that feedback.

The Appsmith Debugger now supports Console methods
23
September
2022
Announcement

The Appsmith Debugger now supports Console methods

The Appsmith Debugger now supports Console methods
Rishabh Rathod
0
 minutes ↗
#
debugger
#
troubleshooting
#
console-methods
Announcement

For a while now, you have used and loved the Appsmith Debugger, nearly complete with a Error pane, system and error logs, and an entity inspector. We say nearly complete because it was missing one of the most popular debugging tools in a dev’s toolkit—console methods.

We are happy to announce the availability of console methods for both cloud users and self-hosters on v1.8.0.

“But, what is the Appsmith Debugger?”


Think of the Appsmith Debugger as a set of Chrome DevTools—like for Appsmith. It lives on the familiar 🐞 everywhere in Appsmith and

  • shows helpful error messages for bindings, queries, and variables
  • lets you inspect entity relationships
  • filters system and user logs

All of this is helpful when debugging unexpected API responses or app viewer experiences. Should you care to learn more, this post breaks down the debugger by each one of its features.

“Okay, and console methods are…”

Just one of the most popular ways of print debugging in modern browsers, console methods, exposed by the console API, are a set of functions that help you log the values of variables at set points in your code, messages, or even tabular data so you can investigate them in your browser’s debugging console.

Before today, you could use all supported browser console methods, but only in the browser’s dev tools sub-window. To any developer with their hands dirty with front-end code, the browser debugging subwindow is a necessary evil—a thousand lines of errors, messages, values, and steps that you would have to sift through. We are not going to say, “Looking for the literal needle in the haystack”, but you know you are thinking it.

“And the Appsmith Debugger has a console now?”

Yes! 🥳

So, instead of something like,

you now see,


Sweet? This gets sweeter.

Supported methods

  • log

Almost synonymous with console, the .log() method is one of the most popular ways to log a message or the values of variables defined in your Javascript.

It can also be used to show helpful messages or comments, say, the entry and exit points of functions.

Example


getUUID: () => {
		console.log("entry - getUUID function");
		let prefix;

		let d = new Date().getTime();
		console.log("new date created -", d);
		d += (parseInt(Math.random() * 100)).toString();
		console.log(d, "random number generated by getUUID")
		if (undefined === prefix) {
			prefix = 'uid-';
		}
		d = prefix + d;
		console.log("UUID created -", d);
		console.log("exit - getUUID function")
		return d;
	}

Result

  • error

the .error() method logs an error message to the Appsmith console, be it a a string like, “This is an error message” or the value of a function.

Say you've written a function and you suspect it’s returning an error., but you don’t know what kind. For unknown unknowns like this, `error` comes handy.

Example


checkTextWidget: () => {
		const element = Text1.text;
		if (element == "") {
			console.error("There is an error. The Text property is empty ");
		}
		return element;
	}

Result

  • warn

Jus as .error() aids error investigations, .warn() shows, well, warnings for known knowns. Some situations this can come in handy are,- When the evaluated value of binded data on a widget is not using the same datatype as the expected value- When widgets continue to use deprecated queries or functions- When the timezone used in a datetime functions doesn't match the browser’s

Example


selectDefaultValue: () => {
	 const defaultValue = Select1.selectedOptionValue;
		if (defaultValue == ""){
			console.warn("No values selected on Select1 widget ")
		}
		return defaultValue;
}

Result

  • table

table (.) just does what it says—logs a Table widget’s data in key-value pairs for rows as objects. While we support this in Appsmith, we are still working on a browser console-like table, especially as we make the Table feature-richer.

Example


table1DataFunc: () =>{
		const data = Table1.tableData;
		console.table(data)
}

Result


That’s it! You now have the power of the console right within in Appsmith. There are other useful views available under Logs and we'll talk about them in a follow-up to the Debugger teardown soon. Bookmark this page. Thank us later.

Debugging your app in Appsmith with the Appsmith Debugger, Part 1
20
September
2022
Product

Debugging your app in Appsmith with the Appsmith Debugger, Part 1

Debugging your app in Appsmith with the Appsmith Debugger, Part 1
Ayush Pahwa
0
 minutes ↗
#
product
#
errors
#
troubleshooting
#
debugger
Product

That title is a tongue twister, innit? Almost.

Here’s a meme that isn’t. It’s just the painful truth.


There is no perfect code, so you know debugging is inevitable, but it’s still a chore and is as crushing often times as the meme claims it is.

But, while debugging is inevitable, making it painful is optional, especially when you have the Appsmith Debugger. We have claimed we champion developer experience as many times as we could before without being brazen about it. We think. So, we thought some more and said, “Let’s prove the claim, too.”

“Wait, wait. What is the Appsmith Debugger?”

In 2021, we shipped the Appsmith Debugger, a set of Chrome DevelTools-like features that have helped you investigate and resolve errors in Appsmith.

We recorded a video for it in a series about the Debugger, talked about it in our docs, and referenced it enough times to make you groan about our obsession with errors. If this is the first you are hearing of it, get on our Discord so we can tell you some more about it.

Why we did this

Browser dev tools are as helpful as a magnet when looking for iron fillings in a pristine haystack. To the untrained eye, they can be downright criminal, too.

Source: Reddit

Sure, sure, they nest groups of errors and there are separate tabs for the console and the debugger, but meh! There’s a sea of error messages, system logs, console logs, and then there’s you swimming in it.

Before we shipped the debugger, you saw,

  • errors inside a widget's Property pane that floated on your canvas which probably already had several widgets
  • the Editor’s Response pane, which clubbed legit responses with errors

The Debugger solved several of those problems.


What’s the Debugger have

Available on app.appsmith.com and our self-hosted release images, it can be called by toggling the debug icon—the one that looks like a bug—on the bottom-right corner of your Appsmith screen or with CTRL/CMD +D.

Inside the Debugger, live three panes, Errors, Logs, and Inspect Entity, each with their own uses. In the first part of this two part post, we will break the Error pane down for you and see how it can save you hours over browser dev tools in debugging.

If you would much rather just learn about Logs and Inspect Entity, bookmark this post. We will link to Part 2 in five days. :-)

Errors

Borrowing from a browser’s dev tools sub-window but improving on it radically, the Error pane lists all errors that we see when you are building inside Appsmith. Familiar examples include syntax errors from JavaScript bindings, reference errors from queries, and datatype mismatch errors.

Errors in the pane are specific to an Appsmith entity. Translated from Appsmithlish, it means you see helpful error messages about a faulting widget, a rogue query, or a stubborn JS Object.

Example of a faulting widget and the error beaconing it
A JS Object error

  • These errors get logged to the pane in lockstep with the sequence of code execution in Appsmith.
  • The Error pane is the default view when working with widgets—most noticeable if you have the Debugger sub-window resized as in the pictures in purple—so you know what’s going wrong and where in real-time.
  • The Editor's Error Pane is smarter. It doesn’t automatically switch to the Error pane—Response is the default on this screen—when an error occurs. Instead, the Debug icon lights up in red with a numeric notification that’s like a running ticker for the number of errors the Debugger sees with your queries or JS Objects. Click it to open the Error pane.
  • Every error you see in the pane follows a template with a few helpful pieces of info to help you debug.
Numbers on this image correspond to bullets below. Images in sub-bullets below show what the sub-bullet talks about.

The timestamp

Logged as your code executes or a value evaluates with your widgets, these little breadcrumbs help you track back from when the error occurred to when last it was A-Okay.

The issue

Depending on the error type, you will see a couple different kinds of issues.

  1. With widgets, you’ll see the faulting widget property’s name. An example of this is the commonplace The value at tableData is invalid, occurring when the property tableData expects an Array<Object> datatype but you have an Array<List> instead.
  2. With queries, you see more specific errors, often specific to the datasource you are running your queries to, often indicated by status codes returned by your failing requests.
  3. With JS Objects, we straight-up level with you about the parseability of your functions. Parseability probably isn’t a word, but you know what we mean.

The source

This has two parts to it—the entity’s name.the type of entity the troublesome one is, e.g., SELECT1.WIDGET. As is obvious and has been to you, SELECT1 is the entity’s name and WIDGET is the entity type.

👌🏾 Appsmith Experience plug: Clicking the source takes you to the faulting entity anywhere in Appsmith, be it a widget, a query, or a JS Object. Noice!

The message

This is the most helpful part of the message, beginning with Error and ending with a helpful bit of text or a number.

  1. Because widgets bind to queries or JS Objects using JavaScript, quite a few errors you see are the same as familiar JavaScript errors like SyntaxError or TypeError. Some other errors show is not defined. This is when a variable, a query, or a JS Object isn’t defined, but you have specified it in the Property pane.
  2. In the Editor, these messages go a step further and call out the line number in the editor that has the faulting code. For example, Line 2: Unrecognized token '$'. This type of message has three parts to it.

1. The type: Error

2. The string: relation “public.user” does not exit

3. The line number: Position 15

😻 Appsmith Experience plug: Clicking the message will open our in-app docs finder and run a helpful search to show you top docs matching the error.

Response from queries or bindings

This doesn’t always show, but when it does, it can show you helpful responses with query params or evaluated values of data bindings.

  1. With widgets, you’ll see the evaluated value from the bindings.
  2. With queries, you’ll see the payload from the API you are querying.

“How does all of this help?”

Consider two situations we have painfully drawn for you.

State #1

You have several queries and widgets on your way to a complete build.

Condition #1

You have nested queries inside JS Objects. Meaning, these queries are binded to multiple widgets via JavaScript transformations and have dependent parameters with each other.

Scenario #1

A query fails and returns an error.

Without the Appsmith Debugger

You decide to sift through the browser dev tools sub-window, trying to locate the faulty query in something that looks like ↓.


When you find the first problem query, you’re hoping against hope this is your patient zero.

  1. If so, congratulations aren’t quite in order yet. You’re still going to have to surgery the query to see what went wrong where.
  2. With browser tools, may you be lucky and find a fix in the first hour.

Most times, though, Murphy’s Law applies.

  1. Meaning, you will need to find the last problem query.
  2. Repeat steps #1 and #2 with all the sub-steps in between

If you have a friend who’s on Appsmith, you hear them say, “Good morning. Do you have a ready app? No? Try the Debugger. 🙄”

With the Appsmith Debugger

You see all the errors from all the failed queries In the Error pane and nothing else to crowd your investigation.

  1. You quickly scan by the type of errors.
  2. Errors are listed in the sequence of query execution.
So you can simply scroll to the first failed query, and investigate further.

  1. The error message tells you what failed with the params in which line, neatly indented neatly for you.

Don’t remember the query’s name? Pfft! We got it. Click the error message, and go right to the error source.

Trouble troubleshooting? Click the error message and find super-relevant docs in Appsmith’s doc finder.

At the end of it, you save a whole night’s hair-pulls, wake up bright and fresh, sip your coffee, and wonder why some people still use browser dev tools. 🤔 Maybe you should refer them to us.

State #2

You have the data from a REST API and the table for your dashboard, but you have left the chart for the very end. You are sensible like that. Charts are tricky things in general.

Condition #2

You have to bind the chart widget from Fusion Charts or one of our defaults with a query that should output the format Array<{ x: string, y: number Required }> as input to the widget. This will need JavaScript transformations.

Scenario #2

You get a datatype mismatch error.

Without the Appsmith Debugger

You toggle around the floating EXPECTED STRUCTURE, EXPECTED STRUCTURE - EXAMPLE, and EVALUATED VALUE panes to understand the chart widget’s configuration.

You have a JS Object for the transformation, so you now switch back and forth between the canvas and the JS Editor for each possible fix in the JS code.

  1. By now, you have console.loged your way to the browser tools sub-window. Magnet, meet Iron Fillings In A Haystack.
  2. Forgot the change you made to the JS Object five tries ago? Yeah, well, no System Logs, so what can you do, right? Maybe note each change on Sublime or VS Code from this point on.

With the Appsmith Debugger


Right after you run the transformation, you see the floating-pane-that-we-don’t have-a-name-for-yet show you some red and the Error pane light up with all your errors, timestamped and sequenced by the order of code execution.

  1. You see the type of error and the evaluated value for the faulting entity. Stick to this without worrying about the unnamed floating pane.
  2. Your query has trouble getting a response from your datasource, so you see that error, but hey, you also see the binding failure of that same query with the widget.
  3. No hunting for the query or the widget you want to troubleshoot. One click from the Debugger and you are transported to the associated entity.

You see all the errors from the transformation in one pane with click-actions for each one of them.


Error messages not enough? Click the error and choose, Browse code snippets, and voila! You now now search for the chart + the query right there and see some of our helpful docs.

Made it to here? Your life inside Appsmith is going to change.

Also, this is just part one of this two-part breakdown. What’s next?

https://media.giphy.com/media/3kIGmlW0lvpnmF3bGy/giphy.gif

Better than post-credits. A whole other movie featuring Logs and Inspect Entity. Meanwhile, here’s a few things you can do.

Until the next Debugger post, Appsmiths.

P.S.: We love you.
